Noble 3032 Touchless electronic flush valve for WC - Imagen 1
Noble 3032 Touchless electronic flush valve for WC - Imagen 2
Noble 3032 Touchless electronic flush valve for WC
Noble 3032 Touchless electronic flush valve for WC - Imagen 2

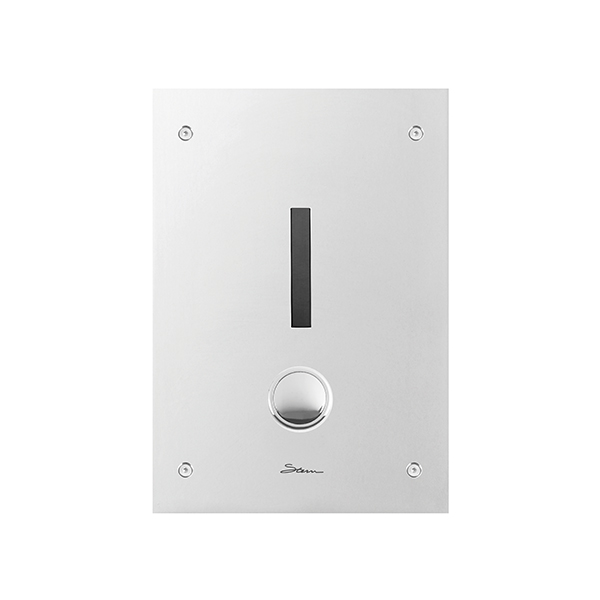

Noble 3032 Touchless electronic flush valve for WC

  • Noble 3032 Touchless electronic flush valve for WC.
  • Solid bronze valve body with stainless steel AISI316 cover plate with tamper proof screws for increased vandal protection.
  • Automatic infrared sensor activated with self-adjusting detection range.
  • Features a manual override push button with anti-block feature.
  • Touch free electronic flush valve for water closet.
  • Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel.
  • Automatic infrared sensor activated with self-adjusting detection range.
  • Concealed installation with 1” angle stop and 1.5” vacuum breaker set and 6 second delay-in time to prevent ghost flushing. Powered by 9V battery. Auto-adjustable sensor range which adapts to the site conditions. Flushing duration and other settings are adjustable by remote control. Includes an adjustable tail piece connection and piston with debris screen and solenoid with self-cleaning mechanism. ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012
  • Noble 3032 Commercial flush valve – Noble 3032 Touchless flush valve

Technical info

Data Sheet

Noble 3032 – 460700
Noble 3032 E – 460710

Request Quote / More Info

Request Quote / More Info

For more information, please fill out the form below:

Log in to see Full Specs
Descripción

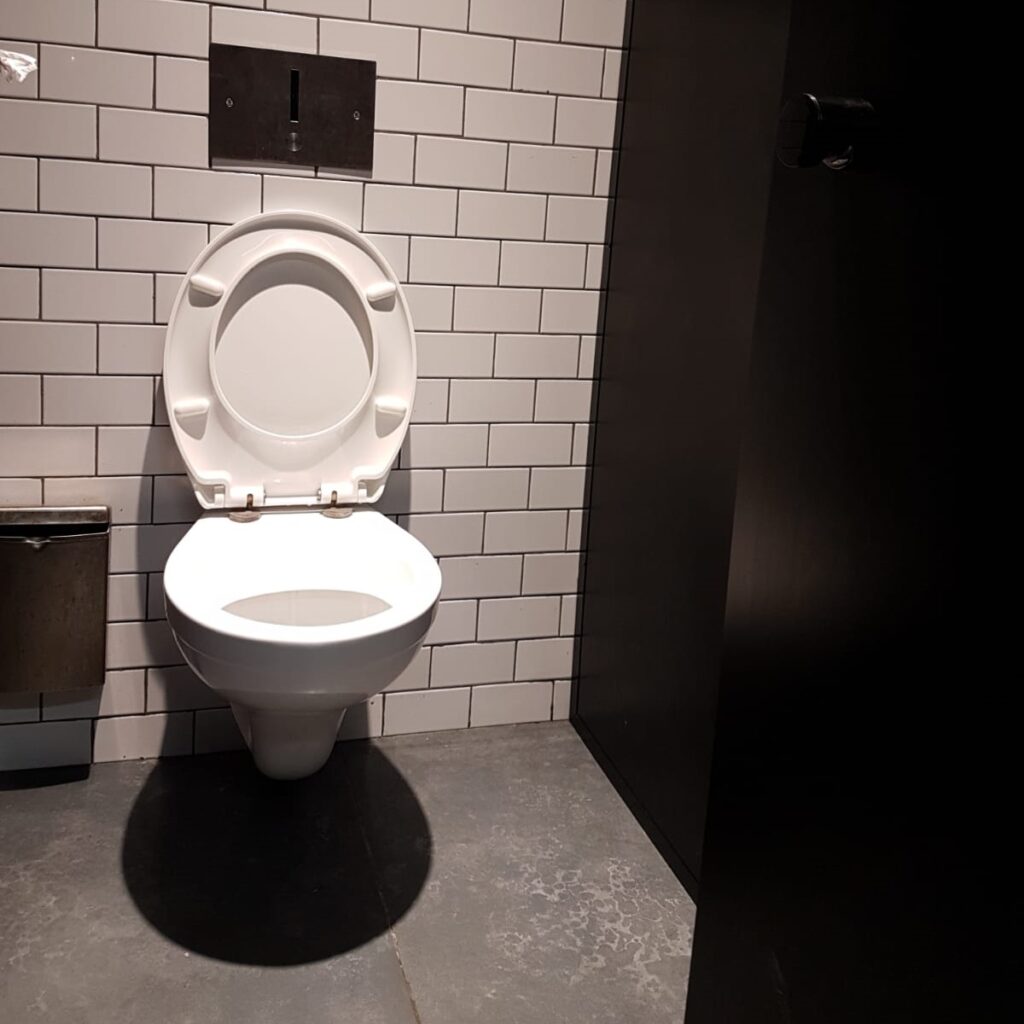

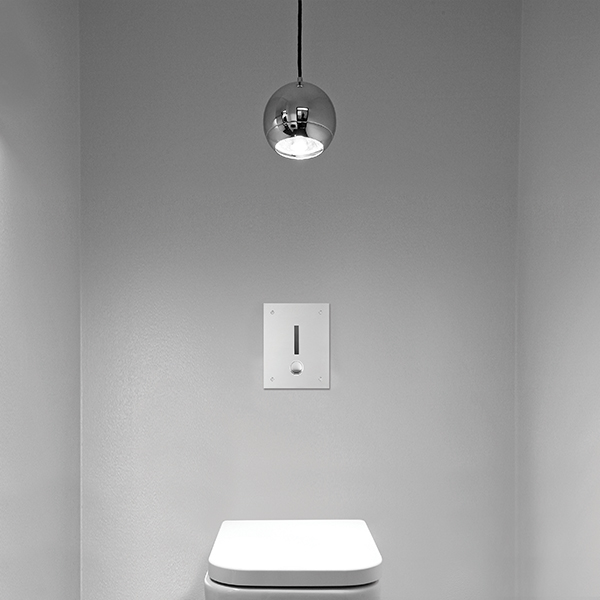

Noble 3032 on site | Noble 3032 Touchless electronic flush valve for WC

Touch free electronic flush valve for water closet. Solid bronze valve body with stainless steel AISI316 cover plate with tamper proof screws for increased vandal protection. Automatic infrared sensor activated with self-adjusting detection range. Features a manual override push button with anti-block feature. Touch free electronic flush valve for water closet. Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel. Automatic infrared sensor activated with self-adjusting detection range. Concealed installation with 1” angle stop and 1.5” vacuum breaker set and 6 second delay-in time to prevent ghost flushing. Powered by 9V battery. Auto-adjustable sensor range which adapts to the site conditions. Flushing duration and other settings are adjustable by remote control. Includes an adjustable tail piece connection and piston with debris screen and solenoid with self-cleaning mechanism. ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012

Application

Helps washrooms to stay neat and cleaner, saves water. Ideal for educational institutions, gas stations, restaurants. Due to its minimalistic style it’s also perfect for any locations with high design standards.

Use
Touch free electronic flush valve for W.C. Water will start flushing once the user moves away from the W.C. If the user has spent less than one minute in front of the sensor a half flush (3 liters) will take place. If the user has spent more than one minute in front of the sensor, a full flow (6 liters) will take place.

Touch free electronic flush valve for water closet Noble 3032 on site | Noble 3032 Touchless electronic flush valve for WC
Información adicional
Power source

Batería de litio de 9V

,

Transformador de 9V
Installation

Concealed
Part Number: 460700/10 Categorías: , , Etiqueta:
