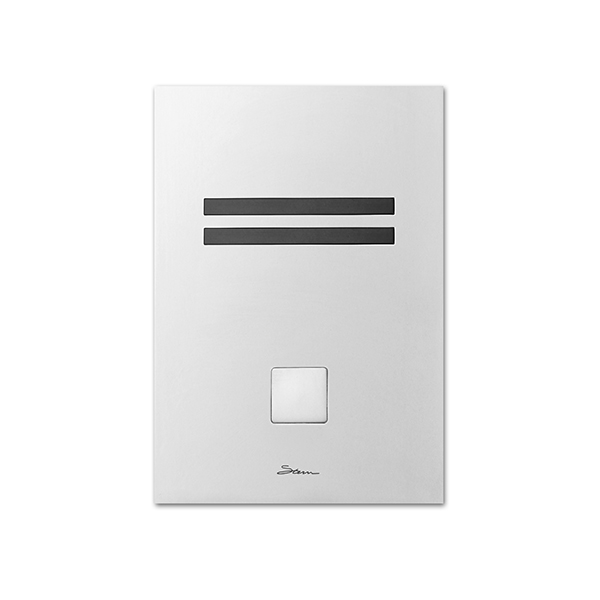

Nara 3002 Touchless electronic flush valve for WC

Nara 3002 Touchless electronic flush valve for WC. Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel.
Automatic infrared sensor activated with self-adjusting detection range.
Features a manual override push button with anti-block feature.
Touch free electronic flush valve for water closet.
Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel.
Automatic infrared sensor activated with self-adjusting detection range.
Concealed installation with 1” angle stop and 1.5” vacuum breaker set and 6 second delay-in time to prevent ghost flushing.
Powered by 9V battery.
Auto-adjustable sensor range which adapts to the site conditions.
Flushing duration and other settings are adjustable by remote control.
Includes an adjustable tail piece connection and piston with debris screen and solenoid with self-cleaning mechanism.
ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012
Nara 3002 Touchless flush valve – Nara 3002 Commercial flush valve

Technical info

Nara 3002 – 160810
Nara 3002 E – 160820

Touch free electronic flush valve for water closet. Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel. Automatic infrared sensor activated with self-adjusting detection range. Features a manual override push button with anti-block feature. Touch free electronic flush valve for water closet. Solid bronze valve body with heavy-duty PVD plated 10” x 7” brass panel. Automatic infrared sensor activated with self-adjusting detection range. Concealed installation with 1” angle stop and 1.5” vacuum breaker set and 6 second delay-in time to prevent ghost flushing. Powered by 9V battery. Auto-adjustable sensor range which adapts to the site conditions. Flushing duration and other settings are adjustable by remote control. Includes an adjustable tail piece connection and piston with debris screen and solenoid with self-cleaning mechanism. ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012

Application

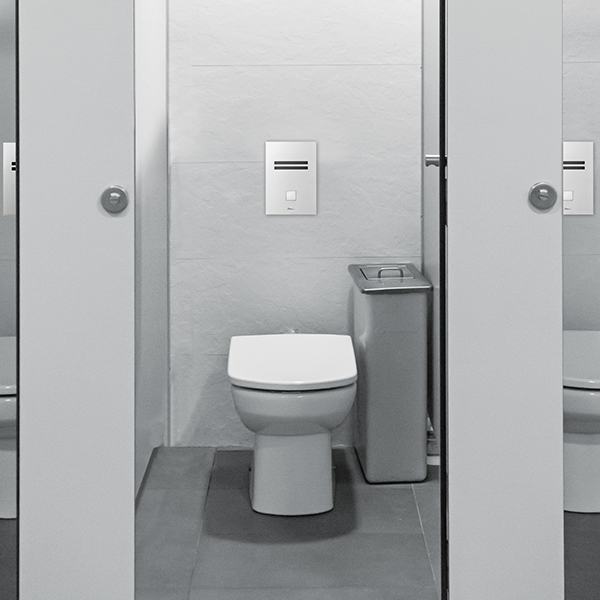

Helps washrooms stay clean and saves water. Ideal for educational institutions, gas stations, restaurants. In addition, its minimalistic style makes it perfect for any locations with high design standards.

Use
Touch-free electronic W.C. flush valve. Water will flush after the user moves away from the toilet. If the user spends less than one minute in front of the sensor, a half flush (3 liters) will take place. For more than one minute, a full flush (6 liters) will take place.
